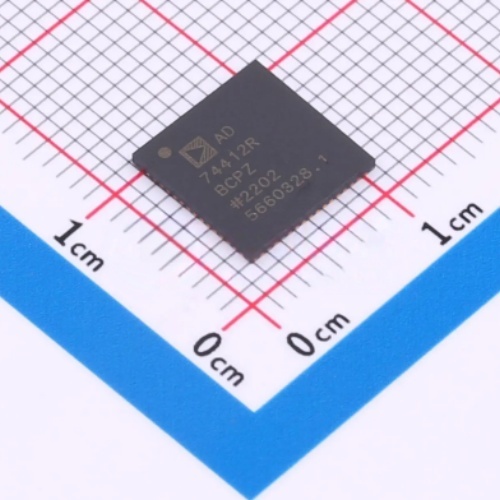

AD74412RBCPZ is a highly integrated, quad-channel precision analog input/output (I/O) system-on-chip (SoC) designed and manufactured by Analog Devices Inc. (ADI). It belongs to ADI’s flagship AD7441x family — a class of fully configurable, software-defined industrial I/O devices that combine high-accuracy ADCs, DACs, voltage/current sources, digital I/O, and diagnostic features into a single 64-lead LFCSP package. The “R” grade denotes enhanced performance and extended temperature qualification, while the BCPZ suffix specifies a 64-lead, 9 mm × 9 mm, thermally enhanced, RoHS-compliant LFCSP package with exposed pad, optimized for industrial automation, process control, and programmable logic controller (PLC) modules.
Introduction
AD74412RBCPZ is a quad-channel, mixed-signal I/O processor capable of independently configuring each of its four channels as:
đš Analog Input (AI): up to ±10 V, 0–20 mA, or 4–20 mA (with HART® capability), using 16-bit Σ-Δ ADCs (24-bit internal processing);
đš Analog Output (AO): voltage (±10 V, 0–10 V) or current (0–20 mA, 4–20 mA), driven by precision 16-bit DACs with on-chip current sense and compliance control;
đš Digital Input (DI): 24 V sinking/sourcing with filtering, debounce, and isolation monitoring;
đš Digital Output (DO): 24 V, 500 mA per channel, with short-circuit/overload protection and power-good reporting.
This unprecedented level of per-channel flexibility eliminates the need for multiple discrete ICs (e.g., separate ADCs, DACs, IO-Link PHYs, or digital drivers), dramatically reducing system complexity, board area, and bill-of-materials (BOM) cost — all while maintaining IEC 61000-4-5 surge immunity (±4 kV), ±15 kV ESD HBM, and –40°C to +105°C industrial operation.
The BCPZ package designation indicates:
- B: Industrial-grade screening and extended reliability testing (AEC-Q100 stress qualified);
- C: 64-lead Chip-Scale Package (LFCSP);
- P: Exposed thermal pad (EP) for efficient heat dissipation;
- Z: RoHS-compliant, halogen-free, and qualified for –40°C to +105°C ambient operation.
Importantly, AD74412R integrates not only signal conditioning but also comprehensive diagnostics — including open-wire detection (for current loops), RTD/thermocouple fault sensing, supply rail monitoring, die temperature sensing, and CRC-protected register access — enabling SIL-2–capable functional safety architectures without external components.
Product Description
Flexible Industrial SoC for Diverse Automation Needs
The AD74412RBCPZ is designed for engineers and system designers seeking adaptable and compact industrial I/O functionality. Featuring four independently programmable channels that can operate as analog inputs, analog outputs, digital inputs, or digital outputs, this device streamlines component integration. By consolidating multiple functionalities into one IC, it reduces board complexity and cost, aligning well with the requirements of manufacturers who rely on pcb assembly services and custom pcb assembly capabilities to optimize device design and production efficiency.
Precision and Robust Performance Across Harsh Environments
Equipped with high-accuracy 16-bit ADCs and DACs alongside robust 24 V digital I/O interfaces, the AD74412RBCPZ supports multiple voltage and current ranges with minimal error. It integrates comprehensive diagnostics such as open-wire detection, over-temperature monitoring, and short-circuit protection within its thermally optimized 64-lead LFCSP package. These technical features ensure industrial-grade reliability and make it compatible with complex pcb solutions where stringent electrical performance and failure prevention are essential.
Integration into Critical Industrial and Process Control Systems
This device excels in modular programmable logic controllers (PLCs), smart transmitters with HART communication support, and safety-rated edge controllers demanding SIL-2 level compliance. Its versatility supports varied application domains including energy management, calibration equipment, and emergency stop systems. The AD74412RBCPZ’s compatibility with advanced PCB assembly manufacturers enables seamless system integration, delivering high reliability and functional safety for mission-critical industrial environments.
Product Advantages
Optimized Design for Modular and Scalable Integration
The AD74412RBCPZ employs a compact, thermally efficient 64-lead LFCSP package facilitating dense integration and minimal PCB footprint. Its fully software-configurable architecture allows hardware reduction, enhancing design flexibility and speeding development cycles. These attributes align precisely with pcb assembly manufacturers’ needs to implement scalable and reliable pcb assembly services. Modular channel configuration supports efficient custom pcb assembly, enabling varied channel assignments across product lines without redesigning hardware.
Superior Operational Reliability and Diagnostic Capability
Performance-wise, the device provides stable operation from –40°C to +105°C with stringent ESD and surge protection critical for industrial environments. Integrated diagnostics including short-circuit protection, open-wire detection, and temperature sensing contribute to enhanced system uptime and predictive maintenance. Utilizing such advanced pcba services ensures higher manufacturing yield and system reliability. Additionally, the device’s SPI interface with CRC protection facilitates secure and error-checked communication, adding user-value in demanding automation and control applications.
Key Features
â
Fully Configurable Quad Channels: Each channel supports AI, AO, DI, or DO mode via software configuration — no hardware changes required. Enables field-upgradable I/O modules and multi-function terminals.
â
High-Accuracy Analog Front-End:
• AI path: 16-bit effective resolution, ±0.05% FSR total unadjusted error (TUE), 100 dB SNR, programmable gain (1×, 2×, 4×, 8×), and built-in 5th-order digital filter;
• AO path: 16-bit monotonic DACs with ±0.02% FSR integral nonlinearity (INL), < 1 LSB gain/offset drift over temperature, and automatic current/voltage range switching.
â
HART®-Ready Analog I/O: Integrated HART modem interface (FSK compliant to IEC 61158-2/62591) on all AI/AO channels — enables seamless integration into smart field device networks without external modems.
â
Robust Digital I/O:
• DI: 24 V nominal, 15–30 V operating range, 10 µs–1 s programmable debounce, galvanic isolation status monitoring;
• DO: 500 mA sink/source per channel, over-current foldback, thermal shutdown, and real-time load-status feedback.
â
Integrated Protection & Diagnostics:
• Open-wire, short-circuit, over-temperature, over-voltage, and under-supply detection per channel;
• On-chip temperature sensor (±1.5°C accuracy);
• CRC-protected SPI interface (up to 50 MHz) with readback of all critical registers and status flags.
â
Industrial-Grade Robustness:
• ESD: > 15 kV HBM on all I/O pins;
• Surge: ±4 kV (IEC 61000-4-5 Level 3) on field-side analog/digital I/O;
• Fast transient immunity: ±2 kV (IEC 61000-4-4);
• Operates from dual supplies: AVDD = 3.3 V, DVDD = 3.3 V, and field-side VSUP = 24 V (or 12–36 V).
â
Thermally Optimized LFCSP-64 (BCPZ): 9 mm × 9 mm footprint with 3.2 mm² exposed copper pad — achieves θJA ≈ 28°C/W (on 4-layer board), supporting full 4-channel simultaneous operation at +105°C ambient.
Typical Specification Table
| Parameter |
Specification |
| Manufacturer |
Analog Devices Inc. (ADI) |
| Product Series |
AD7441x Family (Software-Configurable Industrial I/O SoC) |
| Model |
AD74412RBCPZ |
| Function |
Quad-Channel, Mixed-Mode (AI/AO/DI/DO) I/O Processor |
| Resolution (ADC/DAC) |
16-bit effective (24-bit internal Σ-Δ processing) |
| Analog Input Ranges |
±10 V, 0–10 V, 0–20 mA, 4–20 mA (HART-enabled) |
| Analog Output Ranges |
±10 V, 0–10 V, 0–20 mA, 4–20 mA |
| Total Unadjusted Error (AI) |
±0.05% FSR (max, –40°C to +105°C) |
| INL (DAC) |
±0.02% FSR (max) |
| Digital I/O Voltage |
24 V nominal (15–30 V DI, 12–36 V DO) |
| Digital Output Current |
500 mA per channel (sink or source) |
| Interface |
SPI (3-wire, CRC-protected, up to 50 MHz) |
| Operating Temperature |
–40°C to +105°C (Industrial Grade) |
| Supply Voltages |
AVDD/DVDD = 3.3 V; VSUP = 12–36 V (field side) |
| Package |
64-Lead LFCSP with Exposed Pad (BCPZ) |
| RoHS / Green |
Yes (Pb-free, Halogen-free) |
| Safety Certification |
Designed to support IEC 61508 SIL-2 / IEC 62061 CIP |
Typical Applications
đš Modular PLC & DCS I/O Modules: Replace legacy fixed-function cards with a single AD74412R-based slot — supports hot-swapping, firmware-defined channel types, and predictive maintenance via embedded diagnostics.
đš Smart Field Instruments: Pressure/flow/level transmitters with integrated HART communication, self-calibration, and loop-powered operation — enabled by ultra-low power modes and on-chip regulation.
đš Industrial Edge Controllers: Compact, fanless edge nodes performing local control, data preprocessing, and protocol translation (e.g., Modbus TCP → HART-IP) — leveraging high-speed SPI and deterministic timing.
đš Test & Calibration Systems: Reconfigurable stimulus/response platforms for sensor calibration labs — where one device can emulate both sensor output (AO) and measure instrument response (AI) simultaneously.
đš Energy Management & Power Quality Monitors: Multi-channel voltage/current acquisition with harmonic analysis, event capture, and waveform logging — benefiting from synchronized sampling and high SNR.
đš Functional Safety Systems: Used in safety-rated motion controllers and emergency stop subsystems — supported by diagnostic coverage > 90%, safe failure fraction (SFF) > 95%, and FMEDA data provided by ADI.
Development & Design Notes
đ§ Power Architecture & Decoupling:
- Use three independent low-noise LDOs or DC-DC converters: one for AVDD/DVDD (3.3 V), one for internal analog regulators (AVDD_IO), and one for field-side VSUP (24 V).
- Place 10 µF X5R + 100 nF X7R ceramic capacitors within 2 mm of each supply pin (AVDD, DVDD, VSUP, AVSS). Tie the exposed pad (EP) directly to a solid ground plane with ≥16 thermal vias (0.25 mm) — essential for noise immunity and thermal stability.
đ§ HART Interface Layout:
- Route HART FSK signals (HART_IN/HART_OUT) differentially, with 50 Ω controlled impedance and tight length matching (< 5 mm skew).
- Isolate HART circuitry with ferrite beads and RC filters (10 Ω + 10 nF) at the field connector — prevents RF coupling into analog paths.
đ§ SPI Interface & Diagnostics:
- Enable CRC mode (bit 15 of CONFIG register) for all register writes/reads — mandatory for SIL-2 systems.
- Implement watchdog timer supervision of SPI activity; if no valid command received in >100 ms, force all outputs to safe state (e.g., 0 mA / 0 V) via hardware reset pin.
đ§ Thermal Management:
- At full 4-channel simultaneous operation (e.g., two 20 mA outputs + two 20 mA inputs), power dissipation reaches īŊ1.2 W. Use a 4-layer PCB with internal ground/power planes and ≥200 mm² EP copper area — verified to maintain TJ < 125°C at +105°C ambient.
- Avoid placing heat-generating components (e.g., DC-DC inductors) directly above or adjacent to the BCPZ package.
đ§ Functional Safety Implementation:
- Leverage built-in diagnostics: enable periodic self-test (via TEST register), monitor VDD/VSUP undervoltage flags, and cross-check DAC output against ADC measurement (loopback test).
- ADI provides full FMEDA report, safety manual, and IEC 61508 certification documentation — simplifies ASIL/SIL compliance for end equipment manufacturers.
