AD7195BCPZ is a ultra-high-precision, low-noise, 24-bit Σ-Δ (sigma-delta) analog-to-digital converter (ADC) designed and manufactured by Analog Devices Inc. (ADI). It belongs to the flagship AD719x family, engineered specifically for high-end instrumentation, precision weigh scales, medical imaging, seismic monitoring, and laboratory-grade measurement systems, where exceptional noise performance, integrated programmable gain amplifier (PGA), on-chip reference, and flexible digital filtering are critical.

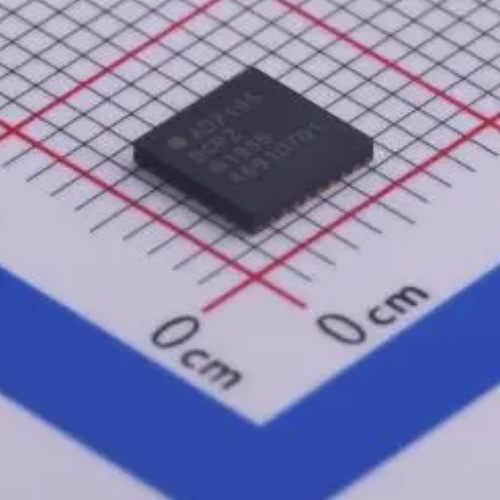

The “BCPZ” suffix denotes the 32-lead LFCSP package (5 mm × 5 mm × 0.75 mm) — an ultra-compact, thermally enhanced, lead-free, RoHS-compliant, and high-frequency-optimized chip-scale package; qualified for industrial temperature range (–40°C to +105°C ambient).
â ī¸ Critical Clarification:
The AD7195 is not a general-purpose ADC. It is a fully integrated, metrology-grade sigma-delta converter, featuring:
- Integrated 128× programmable gain amplifier (PGA): Enables direct interface with microvolt-level sensors (e.g., load cells, RTDs, strain gauges, thermocouples) — input range from ±10 µV (G = 128, 2.5 V ref) to ±2.5 V (G = 1);
- On-chip 2.5 V reference (±0.5 ppm/°C drift, typ.): Ultra-low-drift, laser-trimmed bandgap reference — eliminates need for external precision references and enables < 0.1 ppm/°C system-level drift;
- Ultra-low noise & highest effective resolution in its class: 6.3 nV RMS noise (at 4.17 Hz, G = 128, sinc4 filter), enabling up to 23.7 ENOB (effective number of bits) — among the best-in-class for 24-bit ADCs;
- Flexible digital filtering architecture: Dual digital filters — a primary sinc4 filter (for highest resolution) and a secondary fast-settling FIR filter, supporting simultaneous 50/60 Hz rejection, fast channel switching (< 10 µs settling), and real-time data rate selection (4.17 Hz to 4,800 Hz);
- Eight fully differential input channels with programmable setup registers: Supports up to 8 independent analog input configurations, ideal for multi-sensor systems (e.g., multi-point temperature, multi-axis force sensing);
- Low power operation: 4.5 mA typical supply current (AVDD = 5 V, DVDD = 3.3 V) — optimized for high-performance and power efficiency.
It operates from dual supplies (AVDD = 2.7–5.25 V, DVDD = 1.8–5.25 V), supports true 24-bit no-missing-codes performance, and includes comprehensive self-calibration, system calibration, and diagnostic features — all in a miniature 5 mm × 5 mm LFCSP.
Introduction
The AD7195BCPZ delivers laboratory-grade metrology performance in the smallest possible footprint and highest integration level:
đš Complete sensor front-end in one IC: Combines PGA, ADC, ultra-stable reference, clock, and diagnostics — reducing BOM count by ≥8 components and eliminating matching errors between discrete stages;
đš True sub-10-nV noise performance: At just 6.3 nV RMS (4.17 Hz, G = 128), it achieves 23.7 ENOB, surpassing most competing 24-bit ADCs (e.g., AD7177-2: 22.5 ENOB, LTC2500-32: īŊ22.8 ENOB) — making it ideal for Class 0.005 industrial transmitters and NIST-traceable calibrators;
đš Multi-channel intelligence: Eight independent analog input setups (gain, filter, bipolar/unipolar, reference source) allow dynamic reconfiguration per channel — e.g., simultaneously measuring a 100 µV load cell (G = 128) and a 1 V thermocouple (G = 1) with zero software overhead;
đš Zero-compromise reliability: Pre-qualified across HTOL (1000+ hours @ 125°C), with FIT rate < 7 failures per billion hours, and FMEDA report supporting IEC 61508 SIL-3 — suitable for safety-critical infrastructure.
Its 32-lead LFCSP (BCPZ) package (5 mm × 5 mm × 0.75 mm) offers best-in-class thermal performance (θJA ≈ 35°C/W with 2 oz Cu, 4-layer board) and RF immunity — enabling placement directly adjacent to high-precision sensors without signal degradation.
Key Features
â
Ultra-High-Resolution Sigma-Delta Conversion:
• Resolution: 24-bit (guaranteed no missing codes);
• Effective number of bits (ENOB): Up to 23.7 bits (4.17 Hz, G = 128, sinc4 filter);
• RMS noise: 6.3 nV (4.17 Hz, G = 128), 12 nV (25 Hz), 30 nV (4,800 Hz);
• Output data rate: 4.17 Hz to 4,800 Hz, selectable per channel.
â
Integrated Signal Conditioning:
• Programmable gain amplifier (PGA): G = 1 to 128 (in powers of 2);
• Input configuration: 8 fully differential input channels, each with independent setup register;
• On-chip 2.5 V reference: ±0.5 ppm/°C drift (typ.), ±2 ppm/°C (max), 0.1–10 Hz noise = 150 nV p-p;
• Burnout current sources: Two 200 nA (or 1 µA) matched currents, configurable per channel for RTD/open-wire detection;
• Internal clock: 4.9152 MHz crystal oscillator or external clock support.
â
Dual Digital Filter Architecture:
• Primary filter: Sinc4 (for max resolution, 50/60 Hz rejection);
• Secondary filter: FIR (fast settling, < 10 µs to 0.001% for full-scale step);
• Simultaneous filtering: Both filters operate concurrently — e.g., use sinc4 for weight measurement and FIR for fast status monitoring.
â
Low Power & Flexible Operation:
• Supply voltage: AVDD = 2.7–5.25 V, DVDD = 1.8–5.25 V;
• Quiescent current: 4.5 mA (typ.) @ AVDD = 5 V, DVDD = 3.3 V, 5.5 mA (max);
• Power-down mode: 25 µA (typ.), wake-up time < 20 µs;
• Operating temperature: –40°C to +105°C ambient.
â
LFCSP-32 (BCPZ) Package & Industrial Qualification:
• 32-Lead LFCSP (5 mm × 5 mm × 0.75 mm), with exposed thermal pad;
• RoHS-compliant, Pb-free, halogen-free;
• JEDEC J-STD-020 moisture sensitivity level (MSL) 3 — floor life 168 h at 30°C/60% RH;
• Qualified per AEC-Q200 (automotive grade option available).
Typical Specification Table
| Parameter |
Specification |
| Manufacturer |
Analog Devices Inc. (ADI) |
| Product Series |
AD719x Family (Ultra-High-Precision Σ-Δ ADCs) |
| Model |
AD7195BCPZ |
| Function |
24-Bit Sigma-Delta ADC with PGA & Reference |
| Resolution |
24-bit (no missing codes guaranteed) |
| Effective Resolution (ENOB) |
Up to 23.7 bits (4.17 Hz, G = 128, sinc4) |
| RMS Noise (4.17 Hz, G=128) |
6.3 nV |
| PGA Gain Range |
1, 2, 4, 8, 16, 32, 64, 128 |
| Input Channels |
8 fully differential, independently configurable |
| On-Chip Reference |
2.5 V, ±0.5 ppm/°C (typ.), ±2 ppm/°C (max) |
| Burnout Currents |
Two 200 nA (or 1 µA), per-channel configurable |
| Output Data Rate |
4.17 Hz to 4,800 Hz (per channel) |
| Supply Voltage |
AVDD: 2.7–5.25 V; DVDD: 1.8–5.25 V |
| Quiescent Current |
4.5 mA (typ.) @ AVDD = 5 V, DVDD = 3.3 V |
| Power-Down Current |
25 µA (typ.) |
| Package |
32-Lead LFCSP (5 mm × 5 mm × 0.75 mm) (BCPZ) |
| RoHS / Green |
Yes (Pb-free, Halogen-free) |
| Operating Temp. Range |
–40°C to +105°C ambient |
Typical Applications
đš Ultra-Precision Weigh Scales: Class I (legal-for-trade) and Class 0.005 industrial scales — leveraging 23.7 ENOB, 128× PGA, and built-in burnout for cable fault detection on 6-wire load cells.
đš Medical Imaging & Diagnostics: PET/MRI gradient coil current monitoring, portable ultrasound beamformer digitization, and EEG/ECG front-ends — enabled by ultra-low noise, high CMRR (>130 dB), and 50/60 Hz notch.
đš Laboratory Instrumentation: High-end DMMs, impedance analyzers, and NIST-traceable calibrators — benefiting from < 0.1 ppm/°C system drift and dual-filter architecture for simultaneous precision + speed.
đš Seismic & Geophysical Sensors: Low-frequency vibration, tilt, and pressure sensing in oil/gas exploration and structural health monitoring — using ultra-low 1/f noise and < 100 nV p-p 0.1–10 Hz noise.
đš Multi-Sensor Industrial IoT: Smart factory nodes measuring temperature (RTD), pressure (bridge), and flow (magnetic) simultaneously — via 8-channel independent configuration and auto-channel sequencing.
đš Energy Metrology: Revenue-grade smart meters (IEC 62053-21/22), power quality analyzers — supported by 50/60 Hz synchronous sampling, high linearity (< 1 ppm), and thermal stability.
Development & Design Notes
đ§ PCB Layout Best Practices:
- Place the AD7195 within 5 mm of the sensor — keep analog traces short, symmetrical, and differential; avoid vias under the LFCSP thermal pad.
- Use separate analog (AVDD, AVSS, REFIN±) and digital (DVDD, DGND) power domains — connect at a single point near the exposed thermal pad.
- Add ground guard rings around analog inputs and reference pins — reduces leakage and capacitive coupling.
đ§ Power Supply Decoupling:
- Use 10 µF tantalum + 100 nF ceramic capacitor on AVDD and DVDD, placed within 2 mm of respective pins;
- For best noise performance: add a 10 µF X5R ceramic cap directly across REFIN+ and REFIN– — stabilizes internal reference buffer and reduces 0.1–10 Hz noise.
đ§ Sensor Interface Optimization:
- For 6-wire load cells: use ratiometric configuration (REFIN+ tied to excitation voltage) — eliminates supply drift effects and improves long-term stability.
- For RTDs: enable 200 nA burnout currents and configure G = 32 or 64 — detects open wires while minimizing self-heating error.
- For thermocouples: use external CJC (e.g., ADT7320) and configure FIR filter for fast cold-junction update — then apply software correction.
đ§ Calibration & Accuracy Optimization:
- Perform on-chip zero-scale and full-scale calibration at power-up — corrects for initial offset/gain errors.
- For metrology-grade accuracy: perform system calibration using a 7½-digit DMM as reference — achieves < 0.1 ppm total unadjusted error (TUE).
- Enable 50/60 Hz notch filter (sinc4) for industrial environments — improves rejection to >120 dB.
đ§ Thermal Management & Reliability:
- LFCSP-32 has excellent thermal capability (θJA ≈ 35°C/W with 4-layer board, 2 oz Cu, 100 mm² thermal pad + 20 vias).
- FIT rate = 6.3 failures per billion hours, with FMEDA report supporting IEC 61508 SIL-3 — combine periodic self-test (e.g., internal calibration check every hour) and black-box logging for functional safety.
