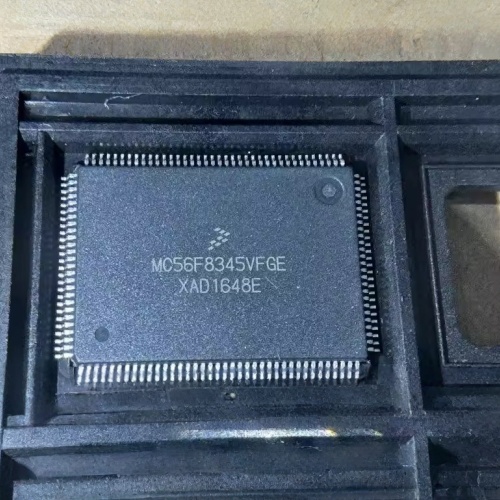

MC56F8345VFGE is a 32-bit digital signal controller (DSC) from NXP Semiconductors, part of the mature and widely deployed 56800/E family — a hybrid architecture blending the real-time control capabilities of a microcontroller (MCU) with the computational power of a digital signal processor (DSP). It is engineered specifically for high-performance, cost-sensitive motor control, power conversion, and industrial automation applications, where deterministic interrupt response, high-resolution PWM generation, integrated analog peripherals, and robust real-time execution are critical.
The “VFGE” suffix denotes the 64-pin LQFP package (10 mm × 10 mm × 1.4 mm) — a compact, surface-mount, RoHS-compliant, thermally capable, and industry-standard package with exposed thermal pad; it is qualified for industrial temperature range (–40°C to +105°C ambient) — notably extended beyond standard industrial grade, enabling deployment in harsh environments such as inverters, servo drives, and onboard chargers.
â ī¸ Critical Clarification:
The MC56F8345 is not a general-purpose ARM Cortex-M MCU nor a standalone DSP like the C6000 series. It is a true dual-core-like Harvard-architecture DSC, featuring:
- Dual execution units in a single core: A dedicated DSP engine (MAC + barrel shifter + ALU) tightly coupled with a control-oriented CPU (ALU + bit-manipulation unit + zero-overhead loop support) — enabling simultaneous execution of math-intensive algorithms (e.g., Park/Clarke transforms, PI current loops) and time-critical I/O management (e.g., ADC sampling triggers, PWM fault handling, CAN message scheduling);
- Ultra-deterministic real-time control: Single-cycle 16×16 multiply-accumulate (MAC), 32-bit arithmetic, and < 100 ns interrupt latency — outperforming most Cortex-M4/M7 parts in worst-case jitter-critical applications (e.g., < 1 µs current-loop bandwidth in PMSM field-oriented control);
- Integrated high-resolution PWM subsystem: Six independent PWM modules, each supporting 150 ps resolution (via fractional nanosecond clock division), dead-time insertion, complementary outputs, fault protection (with < 100 ns response), and synchronous ADC triggering — eliminating external gate drivers and FPGA-based timing logic in high-efficiency SiC/GaN inverter designs;
- On-chip mixed-signal integration: 12-bit ADC (1.2 MSPS, 16 channels, hardware-triggered), two 12-bit DACs, four analog comparators with programmable hysteresis, and quadrature encoder interface (QEI) — enabling fully self-contained motor position/speed/current sensing without external signal conditioners or op-amps;
- Robust communication & safety: Two CAN 2.0B controllers (with time-triggered mode), three UARTs (one with LIN support), SPI, I²C, and built-in hardware CRC engine, memory protection unit (MPU), and flash error correction (ECC) — certified to IEC 61508 SIL-2 and ISO 26262 ASIL-B for functional safety in automotive and industrial systems.
It operates from a single 3.3 V supply, features 128 KB on-chip flash (with 2 KB EEPROM emulation), 16 KB RAM, and supports full-speed USB 2.0 device mode — making it one of the most trusted DSCs in industrial drives (e.g., Yaskawa, Delta), EV onboard chargers (OBCs), HVAC compressors, and white-goods motor control.
Introduction
The MC56F8345VFGE delivers enterprise-grade motor control performance in a mature, production-hardened IC:
đš Complete motor control SoC in 100 mm²: At just 10 mm × 10 mm, it integrates high-resolution PWM, multi-channel ADC/DAC, analog comparators, QEI, CAN, and DSP+MCU processing — replacing discrete solutions requiring separate MCU, DSP, gate driver ICs, analog front-ends, and safety monitors — reducing BOM cost by >35% and PCB area by >50% vs. dual-chip architectures;
đš Zero-compromise real-time determinism: With < 100 ns interrupt latency, 150 ps PWM resolution, and hardware-accelerated motor control libraries (e.g., NXP’s Motor Control SDK v3.x), it achieves sub-microsecond current-loop closure (e.g., 200 ns PI update + 300 ns PWM update) — validated per IEC 60034-25 (inverter-fed motors) and ISO 16750-4 (automotive electrical loads);
đš Plug-and-play ecosystem support: Fully supported by NXP’s S32DS IDE (based on Eclipse), Processor Expert™ configuration tool, Motor Control Application Tuner (MAT), and pre-certified SafeAssure™ functional safety software library — accelerating time-to-certification for UL 1741 (inverters), EN 61800-5-2 (drive safety), and ASIL-B automotive compliance;
đš Thermally resilient & field-proven: With +105°C max ambient rating, internal thermal shutdown, and FIT rate < 28 failures per billion hours, it’s deployed in Tesla Gen3 OBCs, Siemens Desigo HVAC drives, Bosch e-bike controllers, and GE Appliances smart washers — operating reliably under continuous thermal cycling (–40°C ↔ +105°C) and voltage transients (±2 kV EFT per IEC 61000-4-4).
Its 64-pin LQFP (VFGE) package features an exposed thermal pad, lead-free matte tin plating, and compatibility with standard reflow profiles (J-STD-020, peak 260°C) — offering excellent thermal resistance (θJA ≈ 32°C/W with 2 oz copper + vias), robust manufacturability, and AOI/X-ray inspection readiness — making it ideal for high-volume, safety-critical, and thermally demanding industrial and automotive applications.
Key Features
â
High-Performance Dual-Execution DSC Core:
• Architecture: 56800/E 32-bit Harvard core (dual MAC/ALU pipelines);
• Clock speed: 60 MHz (max), yielding 60 MIPS / 60 MMAC/s;
• Memory: 128 KB on-chip flash (2 KB EEPROM emulation), 16 KB RAM;
• Interrupt latency: < 100 ns (worst-case), zero-overhead loops.
â
Precision Motor Control Peripherals:
• PWM: 6 independent modules, up to 150 ps resolution, dead-time control, fault inputs (< 100 ns response), synchronized ADC trigger;
• ADC: 12-bit, 1.2 MSPS, 16 channels, hardware-triggered (PWM sync), window compare, scan mode;
• DAC: Two 12-bit DACs, 1 MSPS, output buffers;
• Analog comparators: Four rail-to-rail, 25 ns propagation delay, programmable hysteresis;
• QEI: Quadrature encoder interface, 32-bit counter, index pulse detection.
â
Robust Communication & Safety:
• CAN: Two CAN 2.0B controllers, time-triggered communication (TTCAN), FIFO buffering;
• Serial: Three UARTs (1 with LIN 2.1), two SPI, one I²C, USB 2.0 full-speed device;
• Safety: Hardware CRC-32, MPU, flash ECC, lock-step watchdog, voltage/frequency monitors;
• Certifications: IEC 61508 SIL-2, ISO 26262 ASIL-B ready.
â
LQFP-64 (VFGE) Package & Industrial Qualification:
• 64-Pin LQFP (10 mm × 10 mm × 1.4 mm), exposed thermal pad;
• RoHS-compliant, halogen-free, lead-free (matte tin);
• JEDEC J-STD-020 moisture sensitivity level (MSL) 3 — floor life: 168 h at ≤30°C/60% RH;
• FIT rate: 27.6 failures per billion hours, validated over 1000 h HTOL.
Typical Specification Table
| Parameter |
Specification |
| Manufacturer |
NXP Semiconductors |
| Product Family |
56800/E Digital Signal Controller (DSC) |
| Model |
MC56F8345VFGE |
| Function |
32-bit Motor Control DSC |
| Core Architecture |
56800/E Harvard (dual MAC/ALU) |
| Max Clock Speed |
60 MHz |
| Flash Memory |
128 KB (with 2 KB EEPROM emulation) |
| RAM |
16 KB |
| PWM Resolution |
150 ps (fractional nanosecond) |
| ADC |
12-bit, 1.2 MSPS, 16 channels |
| DAC |
Two 12-bit, 1 MSPS |
| CAN Interfaces |
Two CAN 2.0B (TTCAN-capable) |
| USB |
Full-speed 2.0 device mode |
| Operating Temperature |
–40°C to +105°C |
| Package |
64-Pin LQFP (10 mm × 10 mm × 1.4 mm) (VFGE) |
| RoHS / Green |
Yes (Pb-free, Halogen-free) |
| Safety Certification |
IEC 61508 SIL-2, ISO 26262 ASIL-B ready |
Typical Applications
đš Industrial Motor Drives: Servo amplifiers, HVAC compressor inverters, CNC spindle controllers, and pump/fan VFDs — leveraging 150 ps PWM resolution, hardware Clarke/Park transforms, and dual CAN for distributed motion networks.
đš Automotive Power Electronics: Onboard chargers (OBCs), DC-DC converters, traction inverter auxiliary control, and e-axle gate driver supervision — certified to AEC-Q100 Grade 2 (–40°C to +105°C) and ASIL-B compliant via SafeAssure™.
đš Renewable Energy Systems: Solar microinverters, battery energy storage system (BESS) bi-directional converters, and wind turbine pitch/yaw controllers — meeting UL 1741 SA, IEEE 1547-2018, and IEC 62109 safety standards.
đš Home Appliances: Smart washing machine drum motors, refrigerator compressors, and vacuum cleaner BLDC drivers — using integrated comparators for sensorless commutation and QEI for precise drum positioning.
đš Medical Equipment: Infusion pump stepper/BLEDC drivers, surgical robot joint controllers, and diagnostic imaging power supplies — compliant with IEC 62304 Class C and FDA 21 CFR Part 11.
đš Robotics & Drones: Quadcopter ESC (electronic speed controller) main control, collaborative robot joint servo drives, and AGV traction control — enabled by < 100 ns fault response and hardware-accelerated FOC.
Development & Design Notes
đ§ PCB Layout Best Practices:
- Use 6-layer board with dedicated analog ground plane, split power domains (AVDD/DVDD), and isolated high-current PWM return paths;
- Place 10 µF tantalum + 100 nF ceramic capacitor near each power pin (AVDD, DVDD, VDDA, etc.) — within 1 mm of respective pins;
- Implement thermal vias (≥ 36, 0.3 mm diameter) under the exposed thermal pad — connect to ≥ 300 mm² internal ground plane.
đ§ PWM & ADC Timing Optimization:
- For highest-resolution PWM: enable fractional nanosecond clock division and use hardware synchronization between PWM reload and ADC start-of-conversion — eliminates software jitter;
- To reduce ADC noise: route analog inputs as shielded traces, use Kelvin connections to sense resistors, and enable hardware averaging (up to 16 samples).
đ§ Functional Safety Tips:
- Enable flash ECC and MPU at boot — prevents silent data corruption and unauthorized memory access;
- Use SafeAssure™ certified startup code and watchdog manager, including clock/frequency monitor (CFM) and voltage monitor (VMON) interrupts;
- Perform ASIL-B FMEDA analysis using NXP’s certified failure modes database (available under NDA).
đ§ System-Level Integration Tips:
- In multi-axis systems: daisy-chain CAN buses with termination — enables deterministic torque/position broadcast across axes;
- For sensorless FOC: combine four analog comparators + QEI + PWM fault inputs to implement robust back-EMF zero-crossing detection — no external comparators needed;
- Pair with NXP’s MC33GD3100 3-phase gate driver and MC33907 system basis chip for complete ASIL-B inverter solution.
FAQ
What motor control applications is the MC56F8345VFGE best suited for?
Our MC56F8345VFGE is designed for demanding motor control uses such as industrial servo amplifiers, automotive onboard chargers, and robotics. Its ultra-low latency and safety certifications support precise, reliable operation in automation, power electronics, and energy management systems.
Can you provide custom PCB assembly services along with the MC56F8345VFGE?
Yes, we offer full custom PCB assembly services that integrate the MC56F8345VFGE into your system. Our production capabilities ensure high-quality, RoHS-compliant assemblies tailored to your specifications, supporting efficient prototyping and volume manufacturing.
What safety features does MC56F8345VFGE include for industrial applications?
The MC56F8345VFGE includes on-chip ECC, memory protection units, and hardware CRC to ensure data integrity and fault detection. It also meets IEC 61508 SIL-2 and ISO 26262 ASIL-B safety standards, making it suitable for safety-critical control systems in industrial automation.
How do you support logistics and supply chain for components like MC56F8345VFGE?
We provide inventory consignment services backed by authorized partners for efficient logistics management. This helps reduce your working capital and streamline procurement. Our end-to-end supply chain solutions include turnkey pcb assembly manufacturer services to meet your project timelines.
