KLMCG4JETD-B041004

Introduction

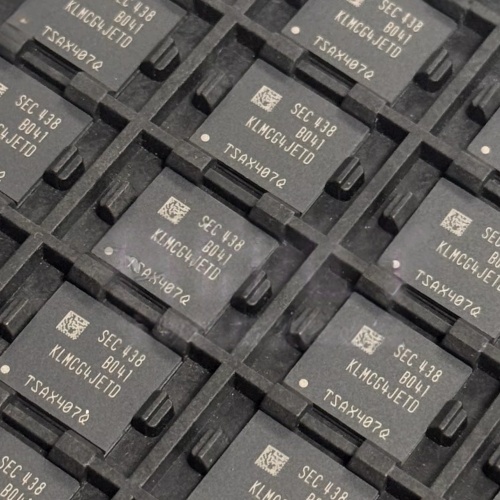

The KLMCG4JETD-B041004 is a high-capacity 64 GB eMMC (Embedded Multi-Media Card) flash memory chip manufactured by Samsung Electronics. As a member of the premium KL series, it utilizes Samsung's advanced 1y-nm (1J) process technology and is typically equipped with MLC (Multi-Level Cell) or high-endurance TLC (Triple-Level Cell) NAND flash. It complies with the eMMC 5.1 standard, integrating NAND flash dies and a controller into a 153-ball FBGA (Fine-pitch Ball Grid Array) package to provide a standard MMC/SD interface.

This model is a popular choice for high-capacity storage solutions in smartphones, tablets, automotive infotainment systems, and high-end industrial equipment requiring high performance and reliability. The suffix "B041004" indicates specific packaging details (Tape & Reel) and revision codes, ensuring compatibility with automated assembly lines.

Key Features

Core Specifications

• Capacity: 64 GB (512 Gb), typically achieved by stacking multiple NAND dies (often in a 128Gb x 4 architecture).
• Flash Type: MLC (2-bit per cell) or High-Endurance TLC. The MLC version offers superior endurance (3,000–10,000 P/E cycles), while the TLC version provides a better balance of cost and density.
• Interface Standard: eMMC 5.1, backward compatible with eMMC 5.0/4.5/4.41.
• Bus Width: Supports 8-bit data bus (default); maximum transfer rate up to 400 MB/s (theoretical in HS400 mode).
• Operating Voltage: 1.8V (VCCQ/VCC) and 3.3V (VCC), supporting dual voltage rails for flexibility.

Performance & Architecture

• Controller: Integrated high-performance Samsung controller supporting hardware ECC (Error Correction Code), Wear Leveling, and Bad Block Management.
• High-Speed Mode: Supports HS400 mode, utilizing DDR interface and Command Queue technology to significantly improve random read/write performance and system responsiveness.
• Partition Support: Supports Boot Area (for system startup), RPMB (Replay Protected Memory Block) (for secure storage), and General Purpose Area (user data).
• Security: Supports hardware write protection, permanent write protection (PWP), erase group protection, and Secure Erase.
• Power Management: Supports Sleep Mode and Standby Mode with ultra-low power consumption.

Package & Reliability

• Package: 153-ball FBGA with a ball pitch of 0.8mm; compact footprint (~11.5mm x 13mm).
• Operating Temperature:
  • Commercial Grade: -25°C to +85°C.
  • Industrial/Extended Grade: -40°C to +100°C (depending on the specific version).
• Endurance: MLC flash typically offers 3,000–10,000 Program/Erase (P/E) cycles, significantly higher than consumer-grade TLC.

Typical Specification Table

Typical Applications

• Mobile Devices:
  • Mid-to-High-end Smartphones/Tablets: Used as the main system drive (OS + Apps + Media) with 64GB capacity, supporting 4K video recording and large game storage.
  • Large-screen Devices: Used in e-readers, smart POS terminals, and other devices requiring large local storage.
• Automotive Electronics:
  • Car Navigation/Infotainment: Stores high-precision map data, operating systems (Android/Linux), and multimedia content.
  • Dashcams/DVR: Supports long-duration high-definition video loop recording (note endurance limits for TLC versions; MLC is preferred).
• Industrial & IoT:
  • Industrial Gateways/HMI: Serves as the boot drive and data logging storage for embedded systems, adapting to wide temperature ranges.
  • Smart Home Hubs: Stores configuration files, logs, and voice data.
  • POS Terminals: Stores transaction data and applications.
• Consumer Electronics:
  • Smart TVs/Set-top Boxes: Used in high-end models (e.g., Amazon Fire TV Stick, Xiaomi Mi Box) to store firmware and applications.
  • VR/AR Devices: Provides fast storage for loading immersive experience assets.

Development & Design Notes

1. PCB Layout:
   • Signal Integrity: In HS400 mode, data lines (DAT0-7) and clock (CLK) require 50Ω single-ended impedance control and strict length matching (error < 50mil).
   • Power Decoupling: Place 10µF and 0.1µF decoupling capacitors as close as possible to the VCC and VCCQ pins to suppress power noise.
2. Boot Configuration:
   • Supports booting from Boot Area 1 or Boot Area 2, configurable via strap pins or software commands.
   • In some motherboard designs, the eMMC RST_n (Reset) pin must be connected to the SoC's reset circuit.
3. Voltage Compatibility:
   • Core voltage is 1.8V; I/O voltage (VCCQ) can be 1.8V or 3.3V. Verify that the SoC's MMC controller voltage matches; use a level shifter if necessary.
4. Lifespan Management:
   • Even with MLC or high-endurance TLC, implement Wear Leveling and Over-provisioning (10–20% reserved space) in the software/firmware for write-intensive applications (e.g., logging) to avoid premature wear.
5. Thermal Management:
   • Heat dissipation relies on PCB copper. It is recommended to pour copper on the bottom layer and add thermal vias under the FBGA package connected to internal ground planes.
6. Data Recovery:
   • If the chip is damaged, a raw NAND dump may be unreadable due to controller encryption and ECC algorithms. Professional tools (e.g., PC-3000) with firmware information are required for recovery.
