KLMBG2JETD-B041004

Introduction

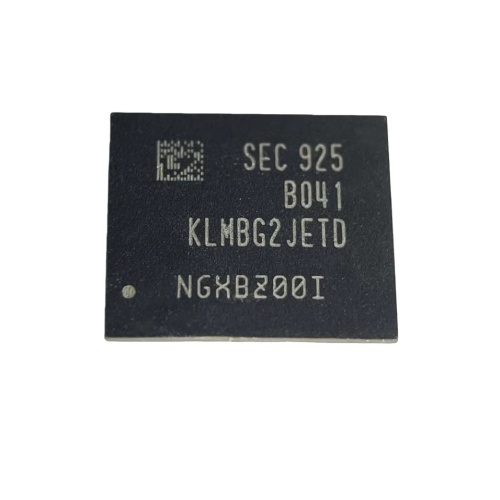

KLMBG2JETD-B041004 is a high-capacity 32 GB eMMC (Embedded Multi-Media Card) flash memory chip manufactured by Samsung Electronics. As a member of the premium KL series, it utilizes Samsung's advanced 1y-nm process technology (indicated by the "J" in the series) and typically features MLC (Multi-Level Cell) NAND flash for superior endurance. It complies with the eMMC 5.1 standard, integrating NAND flash dies and a controller into a 153-ball FBGA (Fine-pitch Ball Grid Array) package.

This chip offers a significant capacity upgrade over 16GB models while maintaining high reliability and performance. It is widely used in high-end smartphones, tablets, automotive infotainment systems, and industrial controllers where large storage space and data integrity are critical. The suffix "B041004" denotes specific packaging details (Tape & Reel) and revision codes for automated assembly lines.

Key Features

Core Performance

• High Density: 32 GB (256 Gb) capacity, organized as 4G x 8 (4 Gigawords x 8-bit I/O). This is double the density of standard 16GB models.
• High-Endurance Flash: Typically utilizes MLC (2-bit per cell) NAND flash (depending on specific batch/revision), offering significantly higher endurance (3,000~10,000 P/E cycles) and better data retention compared to TLC-based alternatives.
• High Speed: Supports HS400 mode with a maximum theoretical data transfer rate of 400 MB/s. Achieves high sequential read/write speeds suitable for 4K video recording and large file transfers.
• Low Power: Operates at 1.8V (VCCQ) and 3.3V (VCC), with ultra-low power consumption in Sleep and Standby modes, ideal for battery-powered devices.

Advanced Architecture & Reliability

• Controller: Integrated high-performance controller supporting Hardware ECC (BCH 40-bit or LDPC), Advanced Wear Leveling, and Bad Block Management to ensure data integrity and extend lifespan.
• Security: Features RPMB (Replay Protected Memory Block) for secure storage of encryption keys, fingerprints, and sensitive user data. Supports Secure Erase and FOTA (Firmware Over-The-Air) updates.
• Interface: Fully compliant with eMMC 5.1, backward compatible with eMMC 5.0/4.5/4.41. Supports 1-bit, 4-bit, and 8-bit bus widths with command queuing.
• Boot Acceleration: Supports SLC Cache / Enhanced Partition mode to store critical OS data, significantly improving boot speed and system responsiveness.

Package & Environmental Specifications

• Package: 153-ball FBGA with a ball pitch of 0.65mm. Compact footprint (~11.5mm x 13mm).
• Temperature Range: Commercial Grade: -25°C to +85°C (Ambient). (Industrial grade versions with wider temperature ranges are available with different suffixes).
• Reliability: RoHS compliant, Halogen-free, and Pb-free.

Typical Specification Table

Typical Applications

• Mobile Devices:
  • High-end Smartphones/Phablets: Used as the main system drive for OS, heavy apps, and 4K video storage. The 32GB capacity eliminates the need for external SD cards in many mid-range devices.
  • Tablets/2-in-1 PCs: Provides ample space for offline content, documents, and applications.
• Automotive Electronics:
  • Advanced Car Navigation/Infotainment (IVI): Stores large map databases, multimedia content, and the operating system. The MLC-based reliability ensures data integrity in harsh automotive environments.
  • Telematics/Dashcams: Handles continuous high-bitrate video loop recording with high endurance.
• Industrial & Embedded:
  • Industrial Controllers/HMI: Stores complex control programs, extensive logs, and UI assets. High reliability ensures 24/7 operation in factory automation.
  • Edge Computing/IoT Gateways: Provides local storage for edge algorithms, container images, and data caching.
  • Medical Devices: Used in diagnostic imaging and patient monitoring systems where data integrity and long-term reliability are paramount.
• Consumer Electronics:
  • Smart TVs/4K Set-top Boxes: Stores the operating system, streaming apps, and cached content.
  • Gaming Consoles/VR Headsets: Provides fast storage for game assets, system updates, and user profiles.

Development & Design Notes

1. PCB Layout:
   • Signal Integrity: For HS400 operation, strict control of 50Ω single-ended impedance for CMD/DAT lines and 100Ω differential impedance for CLK/DQS pairs is mandatory.
   • Length Matching: Data lines (DAT0-7) must be length-matched to the Strobe (DQS) within ±5mil to minimize skew and ensure timing closure.
   • Layer Stack-up: Recommended 6-layer or 8-layer board with solid ground planes adjacent to signal layers to minimize crosstalk and EMI.
2. Power Integrity:
   • eMMC is sensitive to power noise, especially during high-speed writes. Place decoupling capacitors (10µF, 1µF, 0.1µF) as close as possible to the VCC and VCCQ pins.
   • Use a high-efficiency LDO or DC-DC converter; keep ripple voltage below 50mV peak-to-peak.
   • Ensure the power sequencing (VCC before VCCQ) follows the datasheet requirements to prevent latch-up.
3. Thermal Management:
   • Although power consumption is low, the 32GB density may generate more heat during sustained writes. Ensure adequate airflow or use thermal vias under the FBGA package connected to internal ground planes.
4. Initialization & Configuration:
   • The memory controller must execute a strict power-up sequence, including ZQ calibration (impedance matching) and write leveling training, to ensure stable operation at HS400 speeds.
   • Verify the exact flash type (MLC vs. TLC) and speed bin via the full Samsung datasheet or by reading the device ID, as Samsung may mix flash types based on supply chain availability. The "J" series typically guarantees MLC or high-endurance TLC.
