KLM8G1GETF-B041006

Introduction

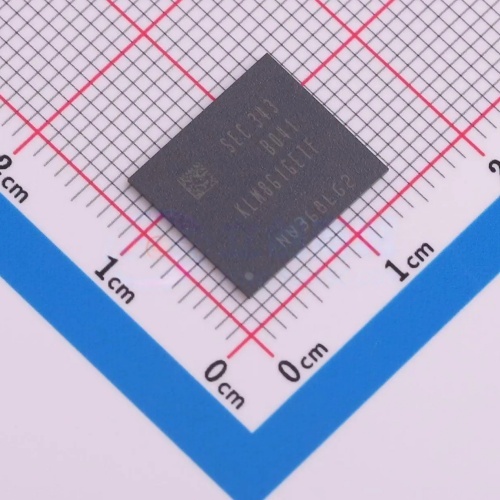

The KLM8G1GETF-B041006 is a high-performance 8GB eMMC (Embedded Multi-Media Card) embedded flash memory chip manufactured by Samsung Electronics. Part of Samsung's premium KL series, it utilizes TLC (Triple-Level Cell) NAND flash technology and complies with the eMMC 5.1 standard. This chip integrates NAND flash dies and a controller into a 153-ball FBGA (Fine-pitch Ball Grid Array) package, providing a standard MMC/SD interface. It is a cost-effective, high-density storage solution widely used in smartphones, tablets, IoT devices, and automotive systems.

Important Note: The suffix "B041006" denotes specific packaging and version codes, while the "T" in the series typically indicates TLC (3-bit per cell) flash. Compared to MLC, TLC offers higher storage density and lower cost but requires robust ECC and wear-leveling algorithms to manage lower endurance. This model remains a "hot" and actively traded component in the market as of early 2026.

Key Features

Core Specifications

• Capacity: 8 GB (64 Gb), typically achieved by stacking multiple TLC NAND dies.
• Flash Type: TLC (Triple-Level Cell)—cost-effective with high density, but requires advanced controller support for endurance.
• Interface Standard: eMMC 5.1, backward compatible with eMMC 5.0/4.5/4.41.
• Bus Width: Supports 8-bit data bus (default); maximum transfer rate up to 400 MB/s (theoretical in HS400 mode).
• Operating Voltage: 1.8V (VCCQ) and 3.3V (VCC); supports dual voltage rails for flexibility.

Performance & Architecture

• Controller: Integrated high-performance controller supporting hardware ECC (Error Correction Code), Wear Leveling, and Bad Block Management to compensate for TLC flash limitations.
• Partition Support: Supports Boot Area (for system startup), RPMB (Replay Protected Memory Block for secure storage), and General Purpose Area (user data).
• Security: Supports hardware write protection, permanent write protection (PWP), and erase group protection.
• Power Management: Supports Sleep Mode and Standby Mode, ideal for battery-powered devices.

Package & Reliability

• Package: 153-ball FBGA with a ball pitch of 0.65mm; compact footprint (~11.5mm x 13mm).
• Operating Temperature: Commercial Grade (-25°C to +85°C) or Industrial Grade (-40°C to +85°C), depending on the batch.
• Endurance: TLC flash typically offers 500–1000 Program/Erase (P/E) cycles, heavily dependent on the controller's wear-leveling efficiency.

Typical Specification Table

Typical Applications

• Mobile Devices:
  • Mid-to-High-end Smartphones/Tablets: Used as the system drive and storage (common in models requiring 8GB+ for OS and apps).
  • Feature Phones/MP3 Players: Portable media storage.
• Consumer Electronics:
  • Network Set-top Boxes/TV Sticks: Used in devices like Amazon Fire TV Stick, Xiaomi Mi Box, etc., to store firmware and applications.
  • E-readers/Digital Photo Frames: Stores content and system files.
• Automotive Electronics:
  • Car Navigation/Infotainment: Stores map data, OS (Android/Linux), and media.
  • Dashcams/Telematics: Loops video recording (note the endurance limitations of TLC).
• Industrial & IoT:
  • Industrial Gateways/HMI: Boot and data storage for embedded systems.
  • Smart Home Hubs: Stores configuration files, logs, and voice data.
  • POS Terminals/Kiosks: Stores transaction data and UI assets.

Development & Design Notes

1. PCB Layout:
   • Signal Integrity: In eMMC HS400 mode, data lines (DAT0-7) and clock (CLK) require 50Ω single-ended impedance control and strict length matching (error < 50mil).
   • Power Decoupling: Place 10µF and 0.1µF decoupling capacitors as close as possible to the VCC and VCCQ pins to suppress power noise.
2. Boot Configuration:
   • The chip supports booting from Boot Area 1 or Boot Area 2, configurable via strap pins or software commands.
   • In some motherboard designs, the eMMC RST_n (Reset) pin must be connected to the SoC's reset circuit.
3. Voltage Compatibility:
   • Core voltage is 1.8V; I/O voltage (VCCQ) can be 1.8V or 3.3V. Verify that the SoC's MMC controller voltage matches; use a level shifter if necessary.
4. Lifespan Management (Critical):
   • Due to TLC flash, physical P/E endurance is lower than MLC/SLC. Efficient Wear Leveling and Bad Block Management must be implemented in the firmware/software.
   • Reserve Over-provisioning space (e.g., 10–20%) to prevent premature wear, especially in write-intensive applications.
5. Thermal Management:
   • Heat dissipation relies on PCB copper. It is recommended to pour copper on the bottom layer and add thermal vias under the FBGA package.
6. Data Recovery:
   • If the chip is damaged, raw NAND dump may be unreadable due to controller encryption and ECC algorithms. Professional tools (e.g., PC-3000) with firmware information are required for recovery.
